KDE17 NEM362 European Coupler Short 7.11mm (2pr)

This industry leading coupler features an NEM 362 European Style Coupler. The #17 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.



Package Includes:

• (2) Pair #17 Couplers (Aassembled) - Short Underset
• (2) #622 Knuckle Springs

#17 Coupler Features:

• Material - Metal Knuckle, Plastic Coupler Swallow-tail Shank

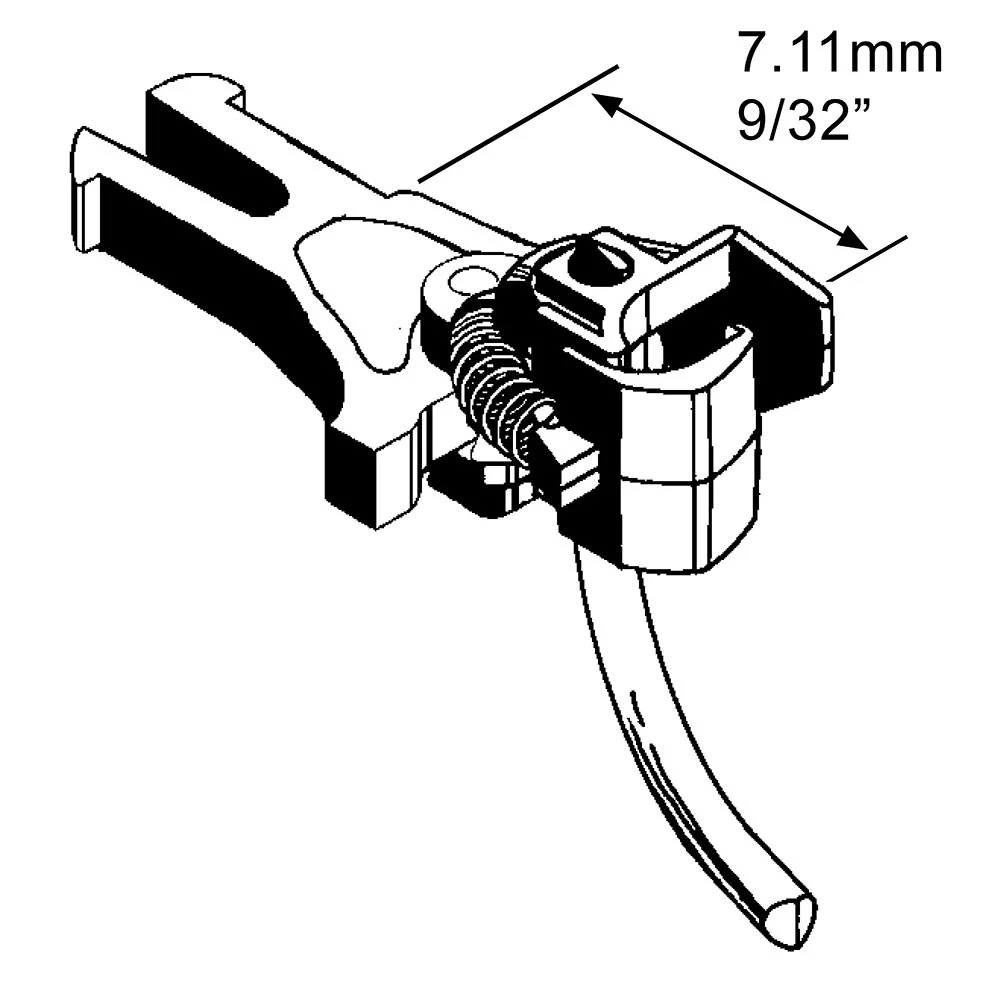

• Length - Short (7.11mm , .280 inch , 9/32") (pulling face to the dovetail sholder)
• Coupler Offset - Underset
• Knuckle Spring - #622
• Centering System - NEM European Style Coupler
• Head - Standard Head

Mounting Specifications:

• Mounting Height - 7.11mm , .334"
• Centerline - 9.9mm , .390"
• Trip Pin Height - .08mm , .031"

Recommended Tools:

• #206 Insulated Muti-Purpose Coupler Height Gauge
• #231 Greas-em Dry Graphite Lubricant
• #241 Dual Tool Manual Uncoupling Tool and Spring Pick
